Model: CE21LED600
Weight: 3000 g
At a glance...

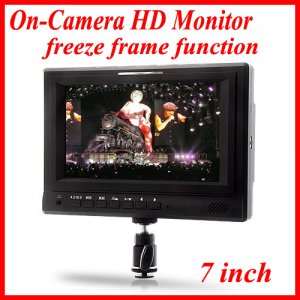

Vibrant HD (1024x 600) DSLR 7 inch monitor
Anti-glare screen works great even under sun light
High Grade Contrast Ratio: 700:1
Tally Light Red/Green Color
Image Multiplication, Image Freeze, Picture in Picture (PIP)
HDMI, and VGA video inputs - Comes with HDMI cable
Ideal for Professional Video Camcorders
Perfect for every amateur and professional camera men and women
Indispensable camera accessory, lots of features
Specifications:
Resolution:1024x 600
Dot pitch 0.05（W）×0.15（H）mm
Screen Size: 7 inch
Display Ratio: 16:9/4:3
Tally Light: Yes
Earphone jack: Yes
Brightness: 250cd/m2
Contrast:700:1
Response time: 10 ms
Viewing Angle (degrees): 75/75, 70/75 (L/R, U/D)
Signal Input: HDMI, YPbPr, Video, Audio (L/R)
Signal output: YPbPr, Video, Audio (L/R)
Input voltage DC 7-24V
Power consumption ≤10W
Dimensions: W: 145 x L: 205 x D: 60 (mm)
Package includes:
Monitor
Allen Key
Mount
BNC Cable
HDMI Cable
Tally Connection Kit
Sun Shade
Sun Shade Fasteners
Power adapter
User Manual- English
Package note:
Includes a freeze frame function: This function displays a side-by-side comparison of the incoming video signal. Each time the F1/2 button is pushed it will freeze the current frame on the right-hand side of the display while the left continues to display the live signal.
FAQ - Frequently Asked Questions
Can I use this HD monitor with my camcorder?
---Yes, so long as you have a way of mounting it to your camcorder. Most people who use this with their camcorders already have a steady cam rig or shoulder rig, so it can mount with your existing hardware by using the tripod screws located at the bottom and side of this device.
